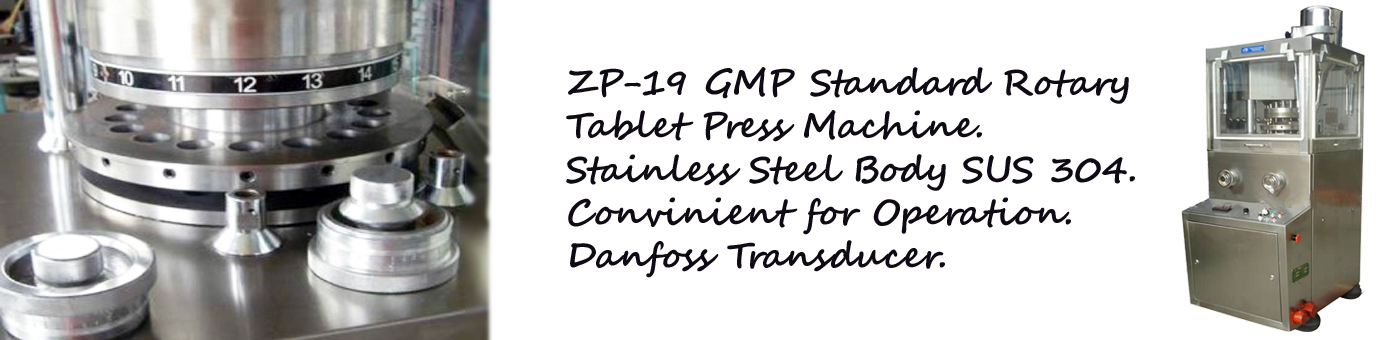

Zp-19 GMP Standard Rotary Tablet Press Machine

Features

It is a basic equipment that suitable for continually pressing the various granular raw materials in tablets.

It is widely used in the pharmaceutical, foodstuff, agriculture, chemical and electronic.

1. Pharmaceutical: Chinese tablets, Western medicine, plain films, chew-able tablet, calcium tablet, buccal tablet, propolis tablet (bee propolis tablet), spirulina tablet, effervescent tablet,pioneer, camphor ball etc.

2. Foodstuff: candy pieces, flake coffeel, chicken essence chunk, seasoning chunk, glucose tablet, milk powder candy etc,.

3. Agriculture: wafered feed, fertilizer chunk, animal food etc,.

4. Chemical: bleaching powder, ceramic powder, powder metallurgy, magnetic materials, antiseptic, powdered carbon,molecular sieve etc,.

5. Electronic: carbon brush, button cell, electronic component etc,.

It is specially suitable for small-scale batch production.
It also can press the blocky products of geometric shapes(round or annular), for instanc electronic element, camphor ball, accelerant and powder metallurgy product, etc.

Technical Parameter :

Model

ZP19

Die no.(set)

19

Max. pressure of tablet

60KN

Max. dia. of tablet

13mm

Max. depth of filling

15mm

Max. thickness of tablet

6mm

Turret speed

22-44r/min

Max. output

45000 pcs/h

Motor

2.2kw

Dimensions(L x W x H)(mm)

760 x 750 x 1550

Net weight

560kg
